High Pressure Tank
The Type4 hydrogen tank of DS AETHER CT is an ultra-light composite tank produced by winding carbon fiber on high-strength plastic liner.
It is a safe product being able to endure a high pressure over 350 bar. The product can be used for all applications using high-pressure hydrogen fuel.
We can develop and supply various sizes of the product according to customer requirement
- Car
Assenger Car, LDV, MDV, HDV, Van, etc.
- Other
Drone, Forklift, Ship, Train, Motorcycle, Heavy equipment, etc.
- Transportation
Mobile station, Tube skid for transportation
- ECE R 134
Global
- HGV2
U.S.
- KGS
Korea
- EC79
Europe
- ISO11119-3
| Working Pressure (bar) | Water Volume (L) | Diameter (mm) | Length (mm) | Weight (kg) | Certification | Mounting Type | Remarks |
|---|---|---|---|---|---|---|---|
| 700 | 40 | 293 | 1,000 | 27 | ECE R134 | Body | - |
| 350 | 190 | 472 | 1,540 | 72 | ISO11119-3 | Body | - |

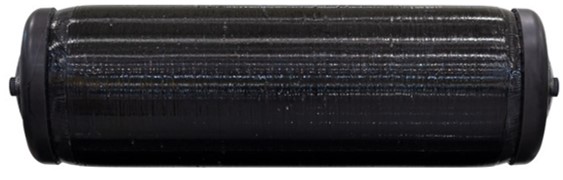

The Type4 CNG tank of DS AETHER CT is an ultra-light composite tank produced by winding carbon fiber on high-strength plastic liner.
It is a safe product being able to endure a high pressure of 200~350 bar.
The product can be used for all applications using high-pressure CNG fuel. We can develop and supply various sizes of the product according to customer requirement.
- Car
Passenger Car, LDV, MDV, HDV, Van, etc.
- Other
Forklift, Ship, Motorcycle, etc.
- Transportation
Tube skid
- KGS
Korea
- NGV2
U.S.
- ECE R 110
- ISO11439
- ISO11119-3
| Working Pressure (bar) | Water Volume (L) | Diameter (mm) | Length (mm) | Weight (kg) | Certification | Mounting Type | Remarks |
|---|---|---|---|---|---|---|---|
| 207 | 60 | 355 | 820 | 15 | ISO11439 | Body | - |
| 350 | 190 | 472 | 1,540 | 72 | ISO11119-3 | Body | - |
DS AETHER CT supplies the module system of Type4 hydrogen and CNG tanks.
We configure the system of car module and transportation tube trailer in the optimized size and capacity according to customer requirement.
