COMPOSITE TUBE

Delivering Value With The Best of Breed Quality & Safety

High Pressure Tank

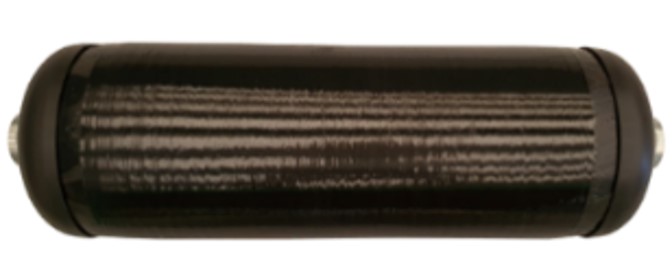

Hydrogen image
HYDROGEN

The Type4 hydrogen tank of DS AETHER CT is an ultra-light composite tank produced by winding carbon fiber on high-strength plastic liner.
It is a safe product being able to endure a high pressure over 350 bar. The product can be used for all applications using high-pressure hydrogen fuel.
We can develop and supply various sizes of the product according to customer requirement

content_paste Application areas
  • Car

    Assenger Car, LDV, MDV, HDV, Van, etc.

  • Other

    Drone, Forklift, Ship, Train, Motorcycle, Heavy equipment, etc.

  • Transportation

    Mobile station, Tube skid for transportation

content_paste Major Certifications
  • ECE R 134

    Global

  • HGV2

    U.S.

  • KGS

    Korea

  • EC79

    Europe

  • ISO11119-3
PRODUCT LIST
Touch and slide from side to side
Working Pressure (bar) Water Volume (L) Diameter (mm) Length (mm) Weight (kg) Certification Mounting Type Remarks
700 40 293 1,000 27 ECE R134 Body -
350 190 472 1,540 72 ISO11119-3 Body -
CNG image
CNG

The Type4 CNG tank of DS AETHER CT is an ultra-light composite tank produced by winding carbon fiber on high-strength plastic liner.
It is a safe product being able to endure a high pressure of 200~350 bar.
The product can be used for all applications using high-pressure CNG fuel. We can develop and supply various sizes of the product according to customer requirement.

content_paste Application areas
  • Car

    Passenger Car, LDV, MDV, HDV, Van, etc.

  • Other

    Forklift, Ship, Motorcycle, etc.

  • Transportation

    Tube skid

content_paste Major Certifications
  • KGS

    Korea

  • NGV2

    U.S.

  • ECE R 110
  • ISO11439
  • ISO11119-3
PRODUCT LIST
Touch and slide from side to side
Working Pressure (bar) Water Volume (L) Diameter (mm) Length (mm) Weight (kg) Certification Mounting Type Remarks
207 60 355 820 15 ISO11439 Body -
350 190 472 1,540 72 ISO11119-3 Body -
Module System image
Module System

DS AETHER CT supplies the module system of Type4 hydrogen and CNG tanks.
We configure the system of car module and transportation tube trailer in the optimized size and capacity according to customer requirement.
